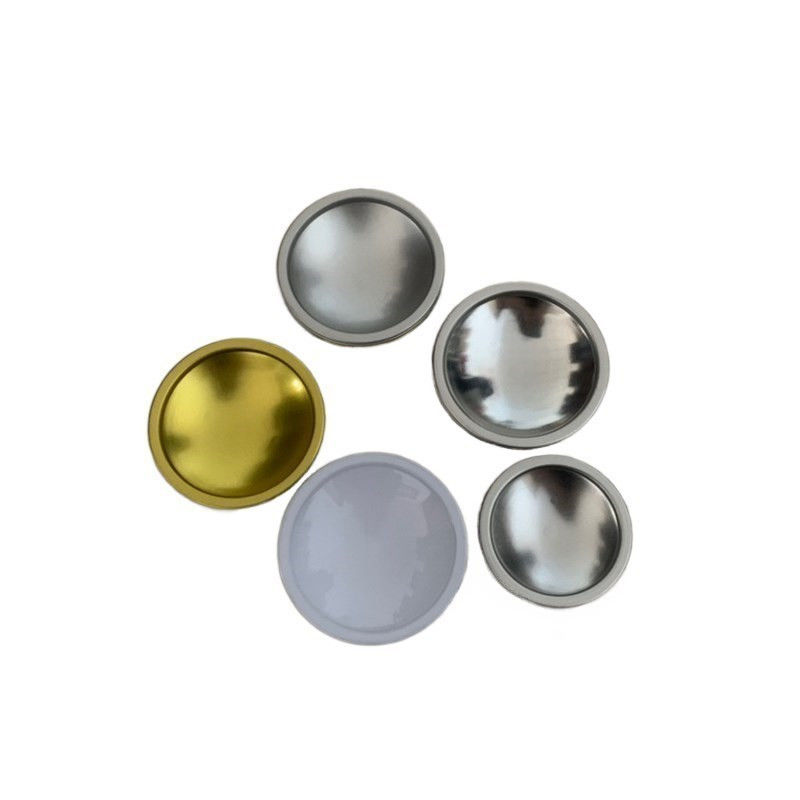

211 Universal spray dome

The outer diameter of the flange (D3) is 75.00±0.20mm
Inner diameter of flange (D2) 73.10±0.30mm
Flange height (H2) 2.45±0.15
Buried depth (H3) 3.10±0.15mm
Total covering height (H1) 14.70±0.20mm
Fit diameter (D1) 65.10±0.20mm
Dry glue quantity 90-110mg
Deformation pressure ≥1.3MPa
Bursting pressure ≥1.5MPa
Indenter fits well with the company's indenter

Thickness of iron sheet 0.32-0.33
Iron hardness T4CA
Coating amount of tin, coating 2.8 gloss oil/gold oil
Inner tin coating amount, coating 1.1/2.8/5.6 inner pigment/gloss oil/gold oil

Iron specification: 0.32*845 T4BA
